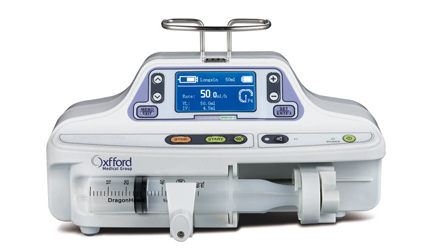

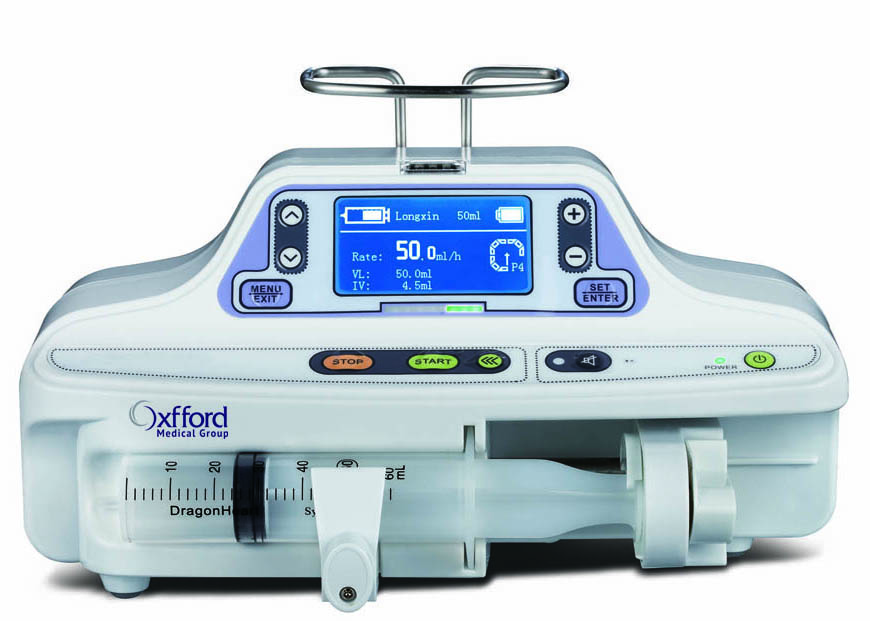

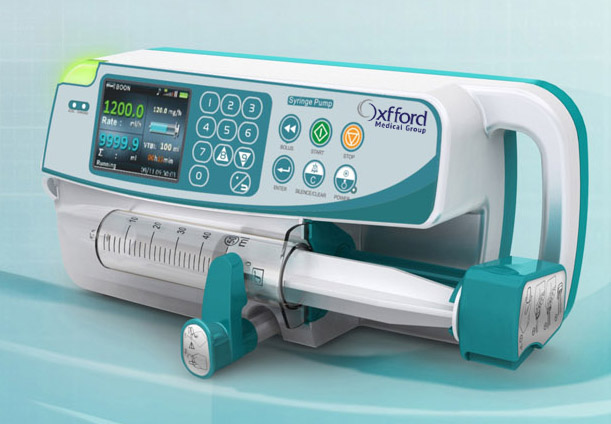

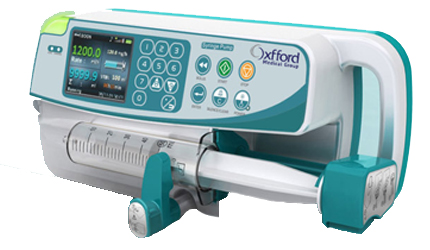

Syringe Pump

• Syringe Mode:Micro and continuous injection
• Syringes:10mL, 20mL, 30mL, 50/60mL syringes, self-identified automatically.
• Syringe Brands:Up to 11 syringe brands could be preset.
• Optional Infusion mode:Drug weight mode, volume/time mode.
• FlowRate Range:10mL syringe: 0.1 ~ 300 mL/h
       20mL syringe: 0.1 ~ 400 mL/h
       30mL syringe: 0.1 ~ 600 mL/h
       50mL syringe: 0.1 ~ 1200 mL/h

• Increment:0.1mL/h
• Flow Rate Accuracy:= ± 2% (including accuracy ± 1% on mechanism)
• Volume Limit:0.1~ 9999.9 mL and empty mode available
• Volume Infused Display:0 ~ 9999.9 mL
• Purge Rate:10mL syringe: 300 mL/h
       20mL syringe: 400 mL/h
       30mL syringe: 600 mL/h
        50mL syringe: 1200 mL/h

• Bolus rate:10mL syringe: 0.1 ~ 300 mL/h
       20mL syringe: 0.1 ~ 400 mL/h
       30mL syringe: 0.1 ~ 600 mL/h
       50mL syringe: 0.1 ~ 1200 mL/h

• Optional Inject Rate Unit:mL/h, mg/h, µg/kg/min, mg/kg/min, µg/kg/h, mg/kg/h, and µg/h.
KVO Rate:1 mL/h
• Occlusion Pressure:Pressure detection device with 8 sensitivities setting, 20 ~ 140KPa, dynamically display pressure value.
• Audio and Visual Alarms:AC power lost, Barrel clasp, Plunger head, Finished. KVO, Near empty, Empty,
• Occlusion, Low battery, Bat. ran out, Battery lost, No operat.
• Display:Blue LCD with high brightness
• Communication Port:RS-232 (for nurse call)
• Power Source:AC: 100V ~ 240V, 50Hz/60Hz, = 25VA
• Battery:Rechargeable Ni-MH battery: DC9.6V, 2000mAh, life: = 4 hours at 5mL/h, remaining battery displayed.
• Operating Conditions:Temperature: 5°C ~ 40°C
• Relative humidity: 20% ~ 90%
• Atmospheric pressure: 70 ~ 106KPa
• Storage Conditions:Temperature: -20°C ~ 55°C
• Relative humidity: 10% ~ 90%
• Atmospheric pressure: 70 ~ 106KPa
