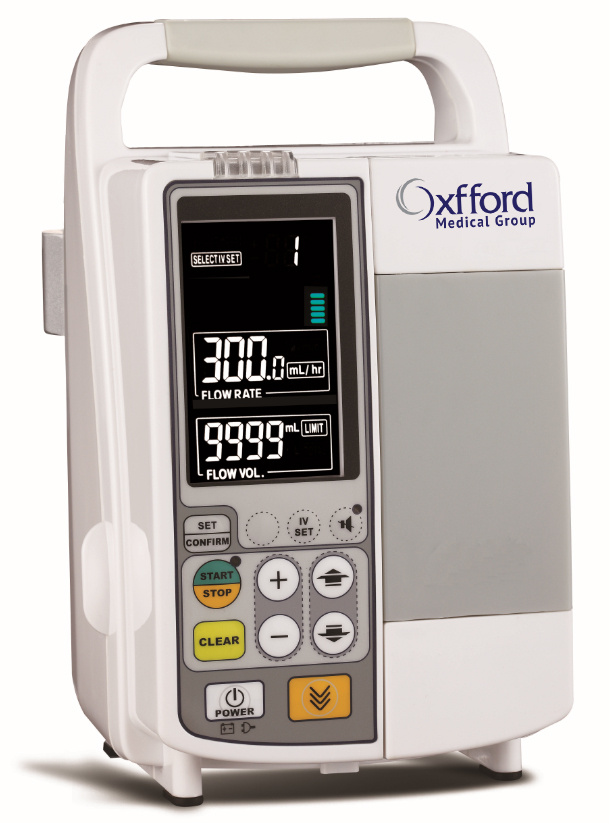

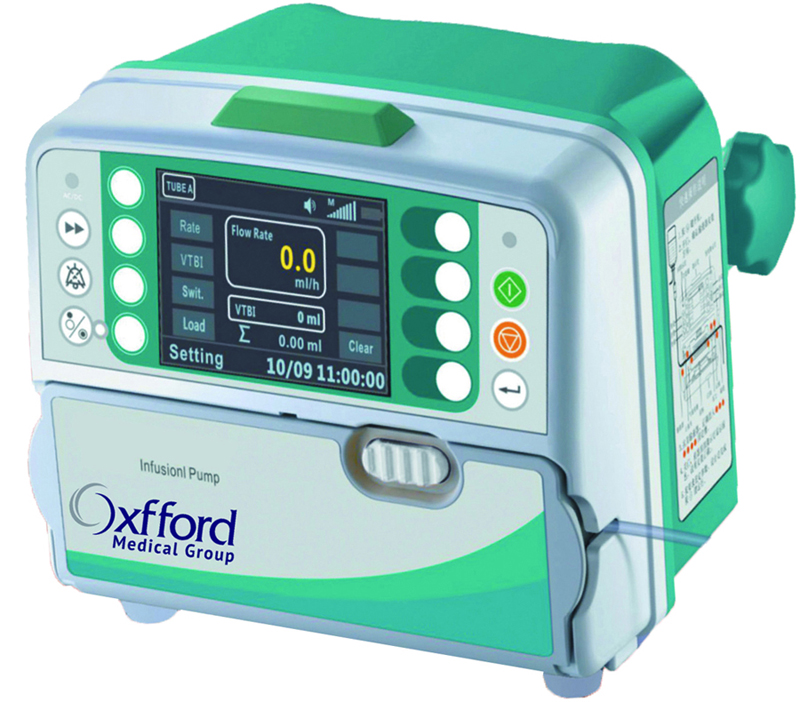

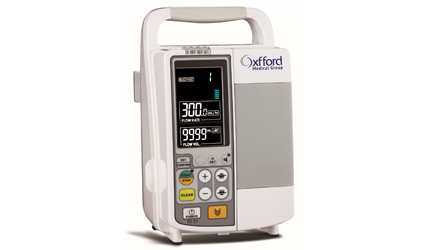

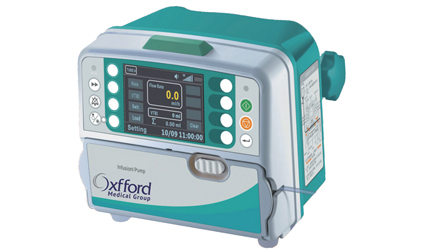

Infusion Pump

• Applicable IV set: Stand IV set with outer diameter 3.4 ~ 4.5 mm
• Pumping mechanism: Peristaltic finger pump
• Infusion mode: Volumetric
• Maximum flow rate: 999.9 mL/h
• Flow rate accuracy: ±5% (after calibration)
• Volume infused display: 0 ~ 9999 mL
• Volume limit: 1 ~ 9999 mL
• KVO (keep vein open): 1 mL/h
• Air-in-line detection: Ultrasonic with 8 sensitivities setting
• Occlusion pressure: 40 ~ 140 KPa, 8 sensitivities setting
• Sound volume: 8 levels setting
• Max. power consumption: =25VA
• Peristaltic finger pump: Detachable
• Tube clamp: Detachable
• Display: Color LCD with high brightness
• AC power: AC100V ~ 240V, 50Hz/60Hz
• Internal battery: Rechargeable Ni-MH battery, DC12V, 2000mAh, life: approximately 4 hours at 25mL/h
• Net weight: 2.3 kg
• Dimensions: 150mm x 150mm x 235mm
• Audio and visual alarms: Air-in-line, Door open, Occlusion, Infusion finished, No operation, Battery low, Pump error, Motor reverse, Pressure abnormity, Sound abnormity, AC power lost.
