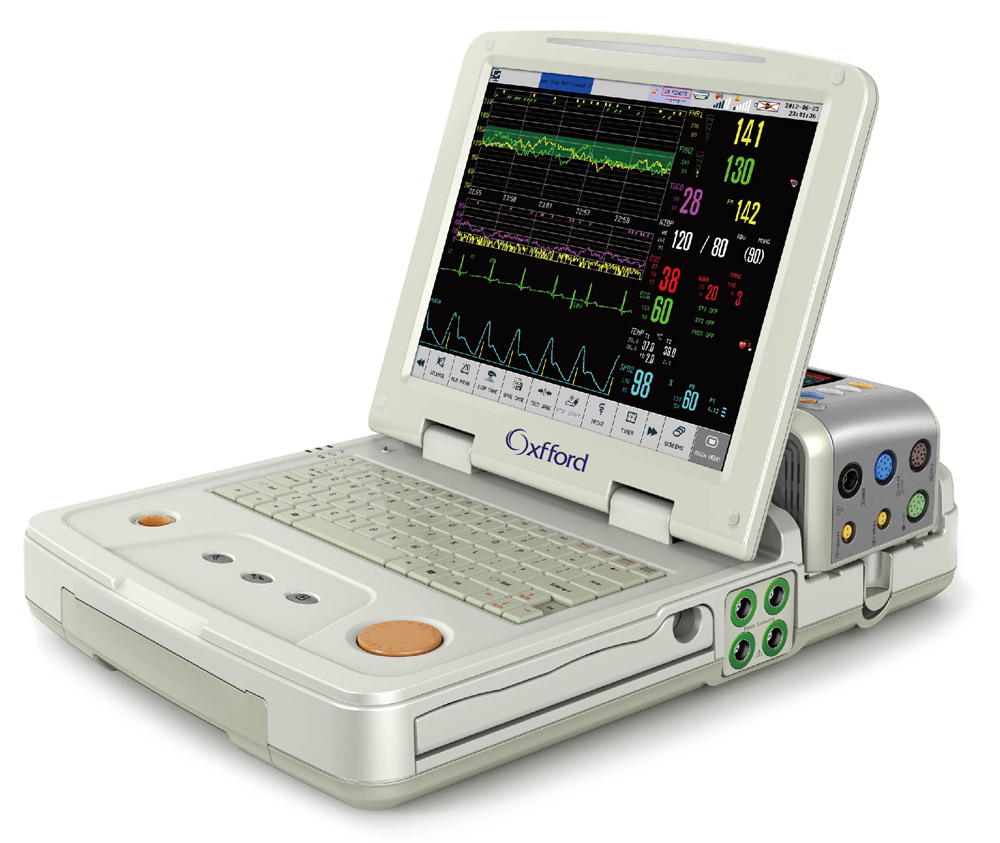

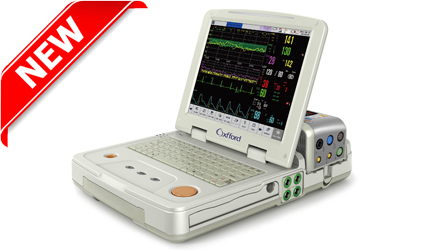

Fetal Maternal Monitors SONO-OX200
-
Fetal Maternal Monitor
Model No. SONO-OX200
Fetal Maternal Monitor
- 12.1" LED Foldable Touch Screen
- Standard: FHR, TOCO, FM, AFM, Printer
- Built-in 152mm wide thermal printer, the printing size is 144mm; CaIi-Rec' intellgent print correcdon funcdon to adjust paper printing direction, which solves the problem of paper jam and inspects hatch cover status in time
- Auto-identification Sensor Unified ports, FHR, TOCO, FM sensors are identified automatically, also showed in display; Humanized setup, to avoid improper operation and is more efficient in work.
- Waterproof Sensors Wide pulse, high sensitivity sensor supporting under-water delivery, low transmission power, large effective received area. RSSI (Received Signal Strength Indicator) on display to assist doctors to find out the most suitable FHR position in a more accurate way.
- Storable Probe Bracket Hidden bracket on the right side to fix sensors.
- Built-in Lithium Battery 4400mAh, more than 4hrs working time.
- Computerized Alphanumeric Keyboard
- Alarm System Three level alarm system for 360 degree observation, easy to see physiological and technical alarm; Unique I-KLOK ' intelligent alarm technology: I-KLOK ' tech can identify alarm grade automatically according to physiological parameters' change; has three different levels of visual & audio alarm, to help medical staff to make accurate judgment.
- Slide-screen technology for quick interface switch
- FHR signal strength indicator, twins cross channel verification, Timing monitoring
- TEMPOM timing monitoring function, automatic identification of alarm level. Self-adjust proper alarm time to reduce false alarms
- Manual / automatic FM measurement, automatic fetal status scoring system Timing printing function
- 120 hours trend storage. Power-off data protection for 30000 cases
- Support wire/wireless central monitoring station connection, built-in WiFi module selectable
- Support data storage and program upgrading by external USB disk
- Optional configuration Plug-in modules ( ECG / HR / SpO / NIBP / RESP / TEMP / PR) twins monitoring fetal wake-up external laser printer

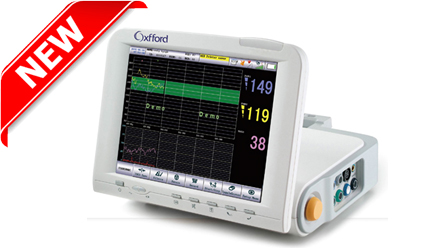

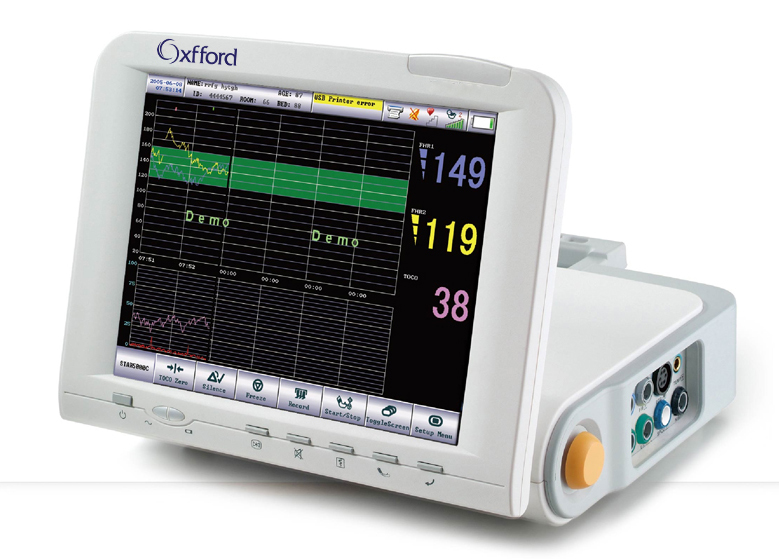

Fetal Maternal Monitors SONO-OX50 Touch
-
Fetal Maternal Monitor
Model No. SONO-OX50 Touch
Fetal Maternal Monitor
- 12.1'' folding-up touch screen, 0~90oC multi-angle observation.
- Parameter: ECG/HR, RESP, NIBP, SpO2, PR, TEMP, TOCO, FHR, FM.
- Various interfaces: main, fetal monitoring, fetal monitoring cascade, big font, multi-parameter, trend graphic display.
- Manual/automatic fetal movement measurement, automatic fetal status scoring system.
- 112mm thermal printer, real-time/timer printing for fetal waveforms and parameters.

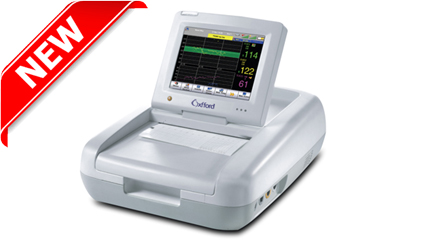

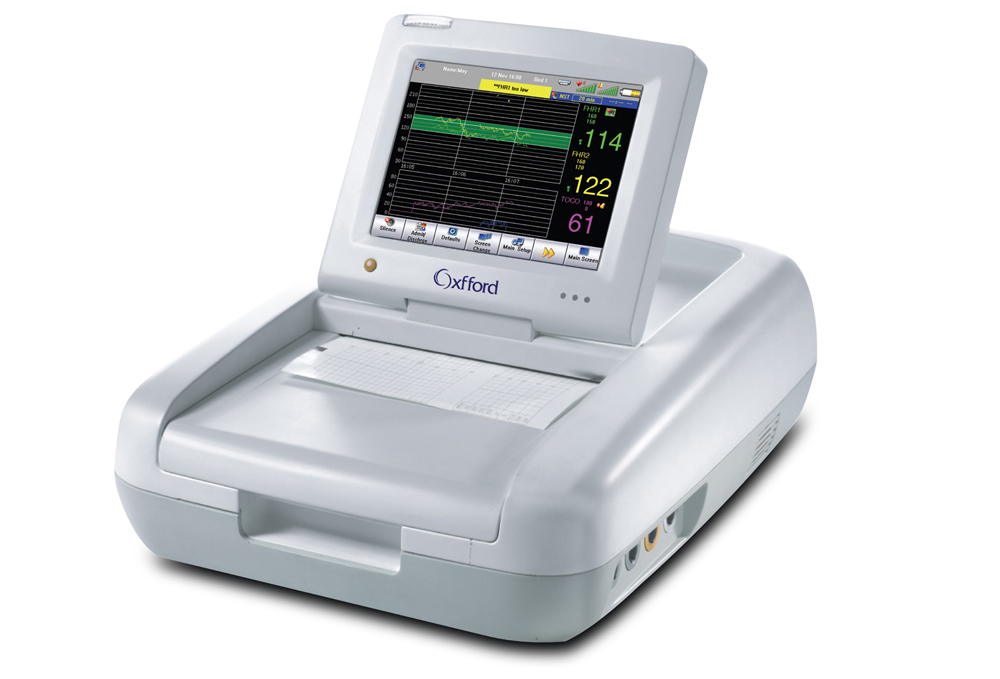

Fetal Maternal Monitors SONO-OX50 Plus
-
Fetal Maternal Monitor
Model No. SONO-OX50 Plus
Fetal Maternal Monitor
- 6.5'' color TFT touch screen, convenient for observation & movement. Built-in 152mm width printer, complied with international standard.
- Automatic detection transducers, flexible connection with sensor, self-optimized interfaces.
- 12-crystal wide pulse wave waterproof transducer, suitable for underwater delivery.
- Advanced patient files management system.
- TEMPOMTM timing monitoring function, avoid overtime monitoring. Intelligent alarm management, automatic-identification of alarm level. Self-adjust proper alarm time to reduce false alarms.

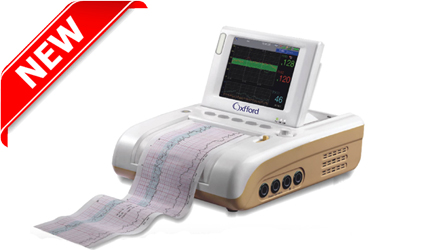

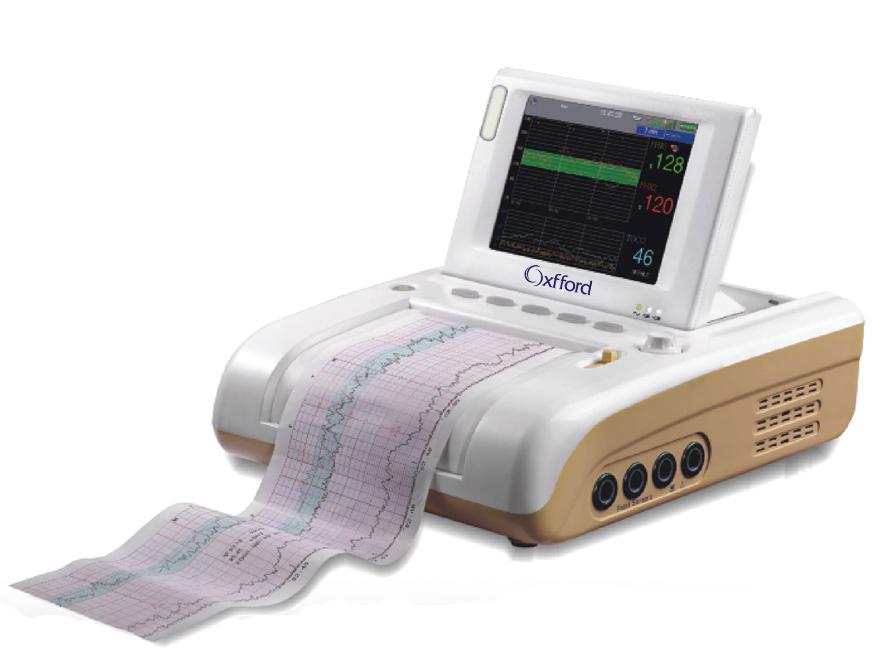

Fetal Maternal Monitors SONO-OX50
-
Fetal Maternal Monitor
Model No. SONO-OX50
Fetal Maternal Monitor
- 5.7'' LCD screen.
- Built-in high-capacity Li-ion battery, above 4 hours working time.
- 112mm wide printer. Special extractable paper slot, easy for paper replacement and observation.
- Support 30mm/Min, 20mm/Min, 10mm/Min
- Real-time printing, and 25mm/Sec high-speed fetal waveform review printing.
- Support timing printing.
- 3-level audio/visual alarms.
- Standard Configuration FHR, TOCO, FM
- Optional Configuration Twin, Fetal stimulator
